This case highlights a critical phase of implant dentistry often unseen by patients: Pre-implant Bone Augmentation. Before a dental implant can be successfully placed, there must be sufficient bone volume to support it. This case demonstrates how advanced surgical techniques can restore the foundation for a missing tooth in patients with severe bone loss.

The patient, a middle-aged adult, presented with a history of chronic periodontal disease. This condition had resulted in severe horizontal and vertical bone defects at the affected site.

• Clinical Findings: Long-term exposure of the tooth root and significant mobility.

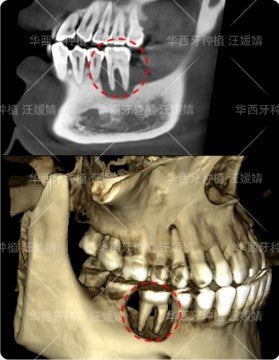

• CBCT Imaging: The scan revealed that the tooth was no longer supported by the alveolar bone. Instead, it was essentially "floating" in the oral cavity, suspended only by granulation tissue.

• Challenge: Due to the extreme lack of bone volume, immediate implant placement was impossible. The treatment plan required a staged approach: extraction followed by extensive bone grafting.


Dr. Wang’s team devised a two-stage surgical plan to regenerate the lost bone structure.

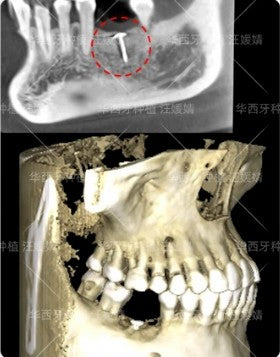

• Stage 1: Bone Grafting & Space Maintenance: Following extraction, the team filled the defect with bone graft material. To prevent the gum tissue from collapsing onto the graft and to maintain the necessary volume for bone growth, a "Tent-Pole" screw (Titanium Mesh/Reinforcement) was implanted. This acts as a scaffold, holding the space open for the new bone to mature.

• Healing Phase: The patient underwent a healing period of 6 months.

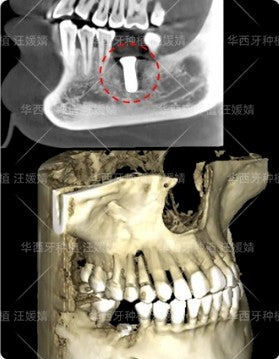

• Stage 2: Implant Placement: Upon review, the alveolar ridge showed ideal volume and density. Dr. Wang’s team removed the tent-pole screw and successfully placed the dental implant fixture.

After a final osseointegration period of approximately six months, the patient will receive the final crown, completing the restorative cycle. This case underscores the importance of site development—ensuring a solid bony foundation is the key to the long-term success of dental implants.
